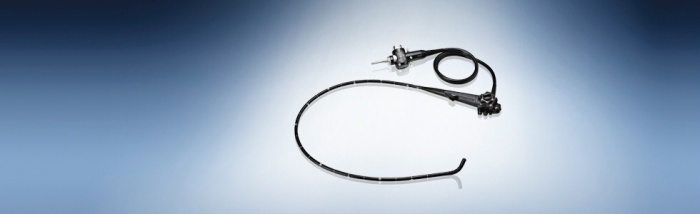

Combining high resolution imaging and Narrow Band Imaging (NBI), the TJF-Q180V duodenoscope sets a new standard for ease of use and security, with an unique dual guidewire locking supporting enhanced ERCP efficiency.

Combining high resolution imaging and Narrow Band Imaging (NBI), the TJF-Q180V duodenoscope sets a new standard for ease of use and security, with an unique dual guidewire locking supporting enhanced ERCP efficiency.

Delivering exceptional image quality, the NBI-compatible TJF-Q180V is the first V-System duodenoscope offering the unique dual guidewire locking mechanism for fast and secure short guidewire exchange. The TJF-Q180V sets a benchmark for performance within ERCP.

Unique Dual Locking Mechanism
The unique dual mechanism securely locks 0.025” and 0.035” guidewires in either a centre or side-lock position, enabling efficient short guidewire exchange in combination with dedicated V-System ERCP devices.

Combining high resolution with NBI
A high quality CCD chip delivers the sharpest possible images. In addition, the NBI filter increases image contrast of capillary vessels, enabling a detailed tissue observation; in particular of the papilla of Vater.

Generous working channel
A slim 11.3mm outer diameter with a generous 4.2mm instrument working channel provides excellent insertion capability and functionality, especially for supporting large stent placement/removal.

Built-in memory
A built-in Scope ID memory chip stores individual scope information, facilitating endoscopy suite management.

Excellent manoeuvrability
The wide four-way angulation range (120° up, 90° down, 90° left, 110° right) facilitates approaching the papilla of Vater.

100°/5° (retro) Field of View
A comprehensive field of view enables observation of a wide area.

Designed for ease-of-use
Ergonomically designed for easy user access to buttons, with user-selectable switches for improved endoscopy operability.

Fully compatible
The TJF-Q180V is compatible with the CV-190 and CV-170 video centres,  including NBI imaging.
